Monday 30 May 2016

ZIKV: ATM dependent signalling, VRK1, autophagy and the ER stress response in neuronal cells

Upon the induction of DNA damage, complex signaling pathways are activated that regulate the ability of cells to detect and repair the damage since both single and double strand DNA damage pose significant risk to cell survival and transmission of unrepaired DNA damage to progeny is associated not only with aging and cancer but also with neurodegenerative diseases. During the DNA damage response (DDR) ds and ss DNA breaks are recognised by ATM, ATR and DNA-PK kinases, which in turn activate signaling pathways that converge on p53 and other scaffold proteins such as 53BP1, that upon recruitment are localised at DNA repair foci. Nuclear Vaccinia related kinase-1 (VRK1) is a nuclear Ser/Thr kinase that phosphorylates multiple proteins involved in the DDR –including p53 and 53BP1- as well as promoting the entry of cells into mitosis by phosphorylating Histone H3 at Thr-3 and Ser-10, thus promoting nuclear condensation.


Figure: Functions of VRK1 in mitotic entry


Figure: Functions of VRK1 in ATM mediated signalling during DDR


In the case of p53, VRK1 stabilises p53 by phosphorylating p53 at Thr-18 thus increasing p53 dependent gene expression and preventing the degradation of p53 by MDM2. During the DDR, VRK1 is predominantly associated with chromatin remodeling and recruitment of 53BP1 to sites of DNA damage and promoting phosphorylation of H2AX at Ser139 in a ATM and p53 dependent pathway as well as promoting the acetylation of both Histone H3 and H4 by recruitment of p300/CBP.
In human cells, loss of VRK1 is associated with arrest in G0 but not G2 phase of the cell cycle and mutations of VRK1 have been associated with complex motor and sensory axonal neuropathy and microcephaly. Since in both ZIKV infected mice brain cells and ZIKV infected human neuronal progenitor cells (hNPC) VKR1 expression is decreased, this supports the notion that the observed defects in the neuronal defects are due to mitotic defects induced by ZIKV.


Figure and table: Gene changes in ZIKV infected foetal cells regarding components of
the non canonical ULK signalling and VRK




Figure: ZIKV and VRK1:inhibition of Histone H# phosphorylation

In addition to promote the DDR and mitotic entry, the activation of VRK1 by Polo-like kinase 3 (Plk3) is also required for MEK1 dependent fragmentation of the Golgi during mitosis and the entry of cells into S phase by inducing the expression of Cyclin D in CREB dependent manner; ZIKV mediated downregulation of VRK1 therefore might not only prevent mitotic entry and the DDR but also interferes with the fragmentation of the Golgi as well as entry of infected cells into S phase. As described before, inhibition of mitotic entry by ZIKV has been proposed to be associated with a prolonged S phase as evidenced by an increase of BrdU positive cells in ZIKV infected foetal brain cells. If this is the case, then ZIKV infection of G1 cells might either not downregulate cyclin D1 expression per se but the observed decrease of Cyclin D expression might be associated with an increase of S phase cells instead. Decreased levels of VKR1 therefore might therefore primarily associated with preventing mitotic entry. Further studies are therefore needed to determine the pathways associated with prolonging S phase v. preventing mitotic entry of ZIKV infected cells.
Figure: ZIKV, VRK1 and Cyclin D1


Additionally, VRK1 also induces the degradation of p53 in a DRAM1 dependent pathway via autophagy; therefore, ZIKV might promote the degradation of p53 via Mdm2 dependent ubiquitination and subsequent proteasomal degradation of p53.


Figure: ZIKV, ATM, VRK1, and p53: ZIKV may increase degradation of p53 via the proteasome
and inhibit DRAM1 dependent autophagy
Phosphorylation of ATM at Ser-181 and ATM dependent formation of autophagosomes however can not only be induced by DDR signaling but also ER stress signaling pathways, namely by CHOP. Indeed, the infection of MDCK and HeLa GFP-LC3 cells with Dengue Virus 2 (DENV2) induces the formation of autophagosomes in the absence of apoptosis in a ATM dependent manner since the inhibition of ATM using Caffeine or siATM both increased the sensitivity of DENV2 infected MDCK cells to Camptothecin as well as decreasing levels of LC3-II (autophagic flux was not determined) at 24 hrs p.i. . During later stages of infection, ATM is is induced in a ROS dependent manner which either are accumulating due to increased PERK activity or mitochondrial damage.
In the case of ZIKV, ATM therefore could be induced as a result of stalled replication as proposed before, the induction of the ER stress response or (especially at late stages of the replication cycle) due to the production of mitochondrial ROS as a result of mitochondrial damage.
Despite the increase in the formation of autophagosomes, autophagic flux in both DENV 2 and ZIKV infected cells however might be inhibited; in the case of DENV, p62/SQSTM1 is degraded by the proteasome and in ZIKV infected hNPC the expression of LAMP2 is downregulated.
In addition, in ZIKV infected cells the clearance of misfolded proteins that accumulate in the ER might be prevented by inhibition of ER-to Golgi COPII dependent traffic and thus contribute to neuronal death similar to ULK1/2 double knockout mice. In ULK1/2 double knockout mice, a complex consisting of SEC16A, SEC23 and SEC24A is activated by site specific of SEC16A by the cellular ULK1/2, thus localising the complex to ER exit sites and promoting the clearance of cargo via COPII dependent traffic. In order to investigate if ZIKV disrupts this specific pathway however, neuronal cells need to be used since in other cell lines this noncanonical role of ULK1/2 might not play an essential role in the clearance of accumulated protein.



In conclusion, ZIKV might activate ATM upon DNA damage and/or the induction of the ER stress response. In both cases, this response however might be abrogated due to the downregulation of VKR1 and components of the COPII dependent ER to Golgi trafficking pathway, leading to neuronal death.

ResearchBlogging.org





Further reading


Lamarche, B., Orazio, N., & Weitzman, M. (2010). The MRN complex in double-strand break repair and telomere maintenance FEBS Letters, 584 (17), 3682-3695 DOI: 10.1016/j.febslet.2010.07.029

Kang TH, Park DY, Kim W, & Kim KT (2008). VRK1 phosphorylates CREB and mediates CCND1 expression. Journal of cell science, 121 (Pt 18), 3035-41 PMID: 18713830

Lopez-Sanchez, I., Sanz-Garcia, M., & Lazo, P. (2008). Plk3 Interacts with and Specifically Phosphorylates VRK1 in Ser342, a Downstream Target in a Pathway That Induces Golgi Fragmentation Molecular and Cellular Biology, 29 (5), 1189-1201 DOI: 10.1128/MCB.01341-08

Gonzaga-Jauregui C, Lotze T, Jamal L, Penney S, Campbell IM, Pehlivan D, Hunter JV, Woodbury SL, Raymond G, Adesina AM, Jhangiani SN, Reid JG, Muzny DM, Boerwinkle E, Lupski JR, Gibbs RA, & Wiszniewski W (2013). Mutations in VRK1 associated with complex motor and sensory axonal neuropathy plus microcephaly. JAMA neurology, 70 (12), 1491-8 PMID: 24126608

Kang TH, Park DY, Choi YH, Kim KJ, Yoon HS, & Kim KT (2007). Mitotic histone H3 phosphorylation by vaccinia-related kinase 1 in mammalian cells. Molecular and cellular biology, 27 (24), 8533-46 PMID: 17938195

 Salzano M, Sanz-García M, Monsalve DM, Moura DS, & Lazo PA (2015). VRK1 chromatin kinase phosphorylates H2AX and is required for foci formation induced by DNA damage. Epigenetics, 10 (5), 373-83 PMID: 25923214

Datan E, Roy SG, Germain G, Zali N, McLean JE, Golshan G, Harbajan S, Lockshin RA, & Zakeri Z (2016). Dengue-induced autophagy, virus replication and protection from cell death require ER stress (PERK) pathway activation. Cell death & disease, 7 PMID: 26938301

Metz P, Chiramel A, Chatel-Chaix L, Alvisi G, Bankhead P, Mora-Rodriguez R, Long G, Hamacher-Brady A, Brady NR, & Bartenschlager R (2015). Dengue Virus Inhibition of Autophagic Flux and Dependency of Viral Replication on Proteasomal Degradation of the Autophagy Receptor p62. Journal of virology, 89 (15), 8026-41 PMID: 26018155

Joo, J., Wang, B., Frankel, E., Ge, L., Xu, L., Iyengar, R., Li-Harms, X., Wright, C., Shaw, T., Lindsten, T., Green, D., Peng, J., Hendershot, L., Kilic, F., Sze, J., Audhya, A., & Kundu, M. (2016). The Noncanonical Role of ULK/ATG1 in ER-to-Golgi Trafficking Is Essential for Cellular Homeostasis Molecular Cell, 62 (4), 491-506 DOI: 10.1016/j.molcel.2016.04.020

Tuesday 24 May 2016

ZIKV infection in mice: cell cycle defects as a cause for microcephaly?

Zika Virus (ZIKV) was first isolated in 1947 from a sentinel monkey in Uganda and despite sporadic local outbreaks only caused mild disease in humans. The emergence of ZIKV combined with severe pathogenicity in South America as early as 2014 however raised questions about the molecular evolution of ZIKV since ZIKV was previously only associated with arthralgia and a mild febrile illness but not neuropathological disorders including abnormal foetal brain development and Guillan-Barre Syndrome (GBS).
ZIKV is a flavivirus closely related to Dengue Virus (DENV) with single stranded positive stranded RNA genome of approximately 10800 bp. Similar to DENV, the ZIKV RNA encodes for a single polyprotein that it is cleaved into the structural (Capsid (C), pre-membrane (prM), and envelope (E)) and non-structural (NS1, NS2A, NS2B, NS3, NS4A, 2K, NS4B, and NS5) proteins with the replication taking place in the cytoplasm of infected although at least the C and NS5 proteins localise to the nucleolus and to nuclear speckles respectively, suggesting that the nuclear localisation of these proteins might be required for efficient viral replication.
Based on genetic and phylogenetic analyses, two lineages can be identified, with epidemics in Micronesia/Yap in 2007, French Polynesia 2013-2014 and the current epidemic in South America being linked to the Asian lineage. Phylogenetic analyses of all contemporary strains share greater homology to ZIKV P6-740 strain isolated from mosquitoes in Malaysia in 1966 rather than the ZIKV IbH-30656 isolated from Nigeria in 1968, suggesting that the current strains circulating in the Pacific and South America are rooted in the African lineage but are descendants of the ZIKV Malaysia/1966. Further analysis revealed that the current Brazilian strains are closer related to ZIKV H/PF/2013 (ZIKV French Polynesia/2013) rather than ZIKV FSM (Federal States of Micronesia)/2007. Since the ZIKV outbreak in Polynesia but not in Micronesia has been associated with an increased risk of GBS and of microcephaly, it might be possible that ZIKV H/PF/2013 and the descendants isolated in the Americas exhibit mutations that cause foetal brain abnormalities and increase the risk of developing GBS. In order to investigate if ZIKV H/PF/2013 is indeed more pathogenic than ZIKV FSM/2007 recently developed mouse models might provide be useful. In addition, the use of the recently developed infectious clone of ZIKV FSS1305 –a strain isolated in Cambodia in 2010- might aid these studies by introducing mutations into viral genes that can be found in isolates from the Americas and/or from French Polynesia. The use of historical strains including the original ZIKV MR-766 isolate to study ZIKV related pathogenesis however is problematic since these strains were originally propagated in mice brains and are therefore highly adapted whereas modern isolates are propagated in mosquitoe C6/36 and Vero cells, although historically the repeated passage of ZIKV MR-766 in mice brain yielded important insights in ZIKV pathogenesis. Using mice however as a model system for studying the teratogenicity of ZIKV is limited since offspring of immunocompetent mice does not develop microcephaly, suggesting that in humans other factors besides ZIKV infection are required for the development of microcephaly. One of the contributing factors might be a previous infection or vaccination against DENV, others might be co-infection with other pathogens that allow ZIKV or ZIKV infected immune cells to cross the placental barrier and infect the embryo.

In the past months, the infection of brain organoids and human neural precursor cells (hNPC) with ZIKV not only let to the identification of the receptor that allows ZIKV entry into neural cells (Axl) but also suggest how ZIKV induces abnormal brain development.
As discussed in detail in previous posts, the infection of hNPC and brain organoids downregulates the expression of genes regulating multiple cellular pathways such as DNA repair, DNA replication and cell cycle progression, suggesting that apoptosis is induced by stalled replication forks and mitotic defects. In general, a model was proposed in which ZIKV induces the depolarisation of mitochondria and inducing caspase-3 dependent apoptosis.  Upregulation of autophagy related genes (ATG) on the other might benefit viral replication by increasing both lipophagy and the formation of viral replication centres whilst at the same time contributing to autophagy mediated cell death.
Close analysis of mouse brains derived from immunodeficient SJL mice pups but not wt C57BL/6 born to females infected with a ZIKV strain isolated from Brazil (ZIKV BR) shows that cortical neurons as well as neurons derived from the thalamus and hypothalamus exhibit nuclear debris suggesting that ZIKV BR does induce apoptosis as well as exhibiting ocular defects similar to human neonate patients and anatomical changes similar to those seen in microcephaly in neonates.  In a similar way, injection of mouse embryos with ZIKV SZ01 (Asian lineage isolated from a Chinese patient) at E13.5 leads to cell cycle arrest as measured by BrdU incorporation, apoptosis of neuronal cells and abnormal differentiation of neural precursor cells suggesting that neuronal death is a common feature of ZIKV infected pups. Furthermore, both ZIKV BR and ZIKV SZ01 replicates efficiently in brain tissue of immunodeficient mice despite not being adapted to mouse cells. In a separate study, injection of ZIKV SZ01 into pregnant C57BL/6 in utero (thus bypassing the placental barrier) affects the cortical development of offspring mice as early as 96 hrs p.i. concomitant with a downregulation of the expression of genes related to cell proliferation and the negative regulation of apoptosis whereas the expression of genes encoding for proteins involved in antiviral signaling is increased, suggesting that ZIKV induces both apoptotic and antiviral signaling pathways in embryonic cells.

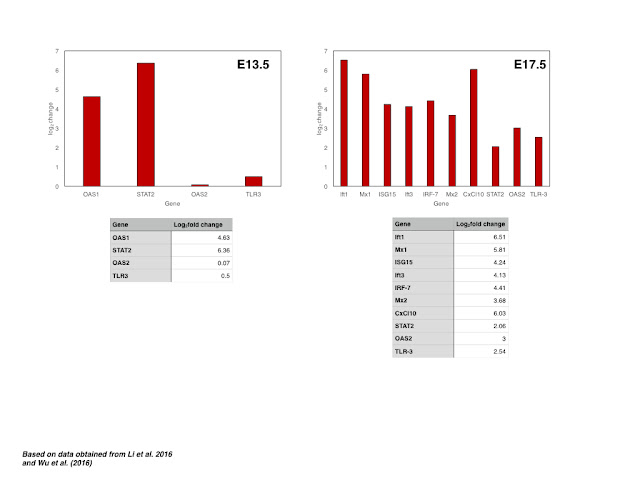

Table: ZIKV induced increase of gene expression  in E13.5 and E17.5 mice embryos

The in utero infection of (mouse) foetal brains with ZIKV SZ01 also decreases the expression of proteins that previously have been linked to the development of microcephaly in particular those that are involved in the separation of chromosomes during metaphase and anaphase, suggesting that ZIKV infected embryonic and/or foetal cells might exhibit incomplete cytokinesis which may lead to the formation of micronuclei and subsequent apoptosis. In a similar way, hNPC infected with ZIKV MR766 exhibit a decrease in the expression of the very same genes confirming that the downregulation of genes regulating mitotic progression might contribute to the development of microcephaly in human foetuses and neonates. Interestingly, the infection of hNPC with ZIKV MR766 also induces the downregulation of Aurora Kinase B, suggesting that the induction of the NoCut checkpoint that regulates the abscission in response to chromosome segregation defects both in yeast and animal cells might be inhibited thus leading to mitotic defects.
Table: Downregulation of gene expression; genes related to microcephaly also regulate mitosis
Since the NoCut checkpoint is induced by stalled DNA replication forks, ZIKV infection might stabilise chromatin bridges. Under normal circumstances chromatin bridges are protected by RAD50 and resolved by APCCdh1    resulting in a delay of abscission but if this is the case in ZIKV infected cells remains to be seen.
Another possibility is however that the infection of ZIKV prolongs S phase by the activation of intra S phase checkpoints and subsequently arresting infected cells in G2 rather than M phase. This notion is supported by flow cytometry analysis of ZIKV MR766 infected hNPC as well as by measuring the presence of Histone H3-P (Ser10), a marker that allows the differentiation between G2 and M phase by flow cytometry in ZIKV SZ01 infected mouse embryonic cells. In addition to the observed G2 arrest, the latter also exhibited duplicated centrosomes suggesting that ZIKV infected indeed do not enter mitosis. As evidenced by the expression of Pax6, Sox2 and Tbr2, ZIKV mainly infects primary neuronal progenitor cells that undergo cell proliferation rather than differentiated neurons, although post mitotic neutrons may be infected as well unless ZIKV positive post mitotic neurons represent neurons that got initially infected prior differentiation and failed to undergo apoptosis prior differentiation. Alternatively, post mitotic neurons may be a infected as a result of viral spread following the infection of immature neurons.

In contrast to other previously published papers using isolates from Brazil of French Polynesia however, ZIKV SZ01 might cross the placental barrier since intraperitoneal injection of ZIKV SZ01 causes abnormal foetal brain development in C57BL/6 mice. Additionally, the results suggest that in C57BL/6 the injection of ZIKV i.p. might not cause viraemia as confirmed by previous studies but unfortunately, no side by side experiments with other ZIKV isolates were performed.

Since the infection of susceptible cells with ZIKV probably induces a TLR-3 dependent antiviral response and thus might induce bystander apoptosis, further research is needed to elucidate the precise signaling pathways that induce the activation of caspase-3. Here the use of specific inhibitors is warranted. In addition, the contribution of autophagy to cell death has not been established despite the reported upregulation of genes such as Bmf, Irgm1, Bcl-2, Htt, Abl1 and Casp6 that are involved in the regulation of the formation of autophagosomes. Since the overexpression of some of the proteins –especially Bcl-2 and Bmf- inhibits rather than promotes the formation of autophagosomes whereas the overexpression of Irgm-1 promotes neuronal autophagy and survival of mouse neurons, the connection between ZIKV induced autophagy and apoptosis might be more complex. Adding to the complexity, the upregulation of Casp6 however might prevent p62/SQSTM-1 dependent selective autophagy despite the upregulation of Htt by cleaving Htt. In addition, cleavage of Beclin-1 by caspase-3 -which generates a C-terminal fragment of Beclin-1- might also inhibit the formation of autophagosomes.
Figure: HTT recognises p62/SQSTM1 and is involved in the recruitment of the ULK complex


Interestingly, A549 cells infected with ZIKV H/PF/2013 do not exhibit autophagosomes or autophagosome-like vesicles whereas human skin fibroblasts infected with ZIKV MR766 do. Both neurons and NPC infected with ZIKV BR at an MOI of 10 exhibit large viral protein aggregates at 24 hrs p.i. suggesting the presence viral replication centres whose precise nature is not known.

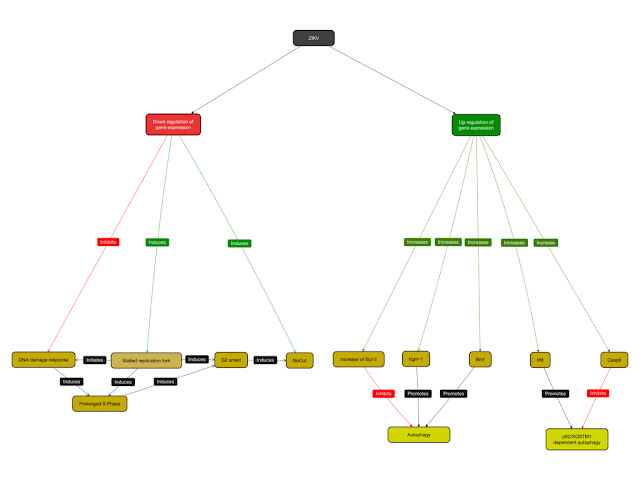

Figure: Hypothetical network in which ZIKV induces the NoCut pathway
and regulates autophagy





                       ZIKV NS5 and STAT2: mitotic defect?

The NS5 protein derived from various members of the Flaviviridae including DENV, WNV, Spondweni Virus, YFV, JEV, Langat Virus (LGV), Yokose Virus (YOKV) and Usutu Virus (USUV) has been shown to bind and degrade STAT2 and thus abrogate the type I Interferon response in Vero cells. In a similar way, the expression of ZIKV NS5 prevents the nuclear translocation of STAT2 by promoting the degradation of STAT2 via ubiquitinylation and subsequent targeting to proteasomes both in transfected and ZIKV Fortaleza infected cells in a species dependent manner, e.g.in Vero, primary human fibroblasts and HEK 293T cells but not in primary mouse fibroblasts derived from IFNAR -/- mice that are otherwise permissible for ZIKV. Three features make NS5 an interesting protein. First, a subfraction of NS5 localises to nuclear speckles in both infected and NS5 transfected cells, suggesting that NS5 is imported into the nucleus where it might co-localise and interact with proteins such as the viral RNA dependent RNA polymerase (RdRp) at sites of active viral RNA synthesis. Second, overexpressed ZIKV NS5 co-localises with (overexpressed) STAT2 in a region that corresponds with the ER, suggesting that the ER stress might be involved in the degradation. Third, a subset of Vero cells expressing ZIKV NS5 exhibits aberrant mitosis reminiscent to those observed in Vero cells expressing the coronaviral N protein, which is characterised by the presence of a cleavage furrow.  The activation of STAT2 has been shown to promote neuronal differentiation in human left cerebrum which includes the development of the visual perception. Since foetal ZIKV infection has been associated with visual defects, it might be possible that ZIKV mediated degradation of STAT2 not only abrogates type I IFN dependent signalling but also interferes with differentiation of neuronal cells, in particular those related to visual perception.




In conclusion, the past months saw tremendous progress in the development of mouse models allowing closer examination of the link of maternal ZIKV infection and the development of microcephaly due to abnormal development of the foetal brain in offspring. With the exception of one study, all of the models successfully employed involved the use of immunodeficient mice suggesting that the passage of ZIKV through the maternal placenta in immunocompetent animals is prevented in most circumstances. In addition to the animal model, studies using human neural progenitor cells and brain organoids suggest that in ZIKV infected cells the expression of genes controlling the cell cycle and inhibiting apoptosis is downregulated, data that are confirmed in transcriptome analysis of foetal brains of infected mice pups. In general however the decrease of genes expression is more pronounced in experimentally infected hNPC than in foetal brain which is probably due to antiviral signalling pathways that restrict the initial infection of embryonal cells in vivo.



ResearchBlogging.org




Further reading


Wang L, Valderramos SG, Wu A, Ouyang S, Li C, Brasil P, Bonaldo M, Coates T, Nielsen-Saines K, Jiang T, Aliyari R, & Cheng G (2016). From Mosquitos to Humans: Genetic Evolution of Zika Virus. Cell host & microbe, 19 (5), 561-5 PMID: 27091703


Tang H, Hammack C, Ogden SC, Wen Z, Qian X, Li Y, Yao B, Shin J, Zhang F, Lee EM, Christian KM, Didier RA, Jin P, Song H, & Ming GL (2016). Zika Virus Infects Human Cortical Neural Progenitors and Attenuates Their Growth. Cell stem cell, 18 (5), 587-90 PMID: 26952870

Rodriguez-Morales AJ, Bandeira AC, & Franco-Paredes C (2016). The expanding spectrum of modes of transmission of Zika virus: a global concern. Annals of clinical microbiology and antimicrobials, 15 PMID: 26939897

Beckham JD, Pastula DM, Massey A, & Tyler KL (2016). Zika Virus as an Emerging Global Pathogen: Neurological Complications of Zika Virus. JAMA neurology PMID: 27183312

Miner JJ, Cao B, Govero J, Smith AM, Fernandez E, Cabrera OH, Garber C, Noll M, Klein RS, Noguchi KK, Mysorekar IU, & Diamond MS (2016). Zika Virus Infection during Pregnancy in Mice Causes Placental Damage and Fetal Demise. Cell, 165 (5), 1081-91 PMID: 27180225

Cugola, F., Fernandes, I., Russo, F., Freitas, B., Dias, J., Guimarães, K., Benazzato, C., Almeida, N., Pignatari, G., Romero, S., Polonio, C., Cunha, I., Freitas, C., Brandão, W., Rossato, C., Andrade, D., Faria, D., Garcez, A., Buchpigel, C., Braconi, C., Mendes, E., Sall, A., Zanotto, P., Peron, J., Muotri, A., & Beltrão-Braga, P. (2016). The Brazilian Zika virus strain causes birth defects in experimental models Nature DOI: 10.1038/nature18296

Deng YQ, Zhao H, Li XF, Zhang NN, Liu ZY, Jiang T, Gu DY, Shi L, He JA, Wang HJ, Sun ZZ, Ye Q, Xie DY, Cao WC, & Qin CF (2016). Isolation, identification and genomic characterization of the Asian lineage Zika virus imported to China. Science China. Life sciences, 59 (4), 428-30 PMID: 26993654

Driggers RW, Ho CY, Korhonen EM, Kuivanen S, Jääskeläinen AJ, Smura T, Rosenberg A, Hill DA, DeBiasi RL, Vezina G, Timofeev J, Rodriguez FJ, Levanov L, Razak J, Iyengar P, Hennenfent A, Kennedy R, Lanciotti R, du Plessis A, & Vapalahti O (2016). Zika Virus Infection with Prolonged Maternal Viremia and Fetal Brain Abnormalities. The New England journal of medicine PMID: 27028667

Li C, Xu D, Ye Q, Hong S, Jiang Y, Liu X, Zhang N, Shi L, Qin CF, & Xu Z (2016). Zika Virus Disrupts Neural Progenitor Development and Leads to Microcephaly in Mice. Cell stem cell PMID: 27179424 Wu KY, Zuo GL, Li XF, Ye Q, Deng YQ, Huang XY, Cao WC, Qin CF, & Luo ZG (2016). Vertical transmission of Zika virus targeting the radial glial cells affects cortex development of offspring mice. Cell research PMID: 27174054


Grant, A., Ponia, S., Tripathi, S., Balasubramaniam, V., Miorin, L., Sourisseau, M., Schwarz, M., Sánchez-Seco, M., Evans, M., Best, S., & García-Sastre, A. (2016). Zika Virus Targets Human STAT2 to Inhibit Type I Interferon Signaling Cell Host & Microbe DOI: 10.1016/j.chom.2016.05.009


Shan C, Xie X, Muruato AE, Rossi SL, Roundy CM, Azar SR, Yang Y, Tesh RB, Bourne N, Barrett AD, Vasilakis N, Weaver SC, & Shi PY (2016). An Infectious cDNA Clone of Zika Virus to Study Viral Virulence, Mosquito Transmission, and Antiviral Inhibitors. Cell host & microbe PMID: 27198478 Ashour J, Laurent-Rolle M, Shi PY, & García-Sastre A (2009). NS5 of dengue virus mediates STAT2 binding and degradation. Journal of virology, 83 (11), 5408-18 PMID: 19279106

Gelman A, Rawet-Slobodkin M, & Elazar Z (2015). Huntingtin facilitates selective autophagy. Nature cell biology, 17 (3), 214-5 PMID: 25720962

Amaral N, Vendrell A, Funaya C, Idrissi FZ, Maier M, Kumar A, Neurohr G, Colomina N, Torres-Rosell J, Geli MI, & Mendoza M (2016). The Aurora-B-dependent NoCut checkpoint prevents damage of anaphase bridges after DNA replication stress. Nature cell biology, 18 (5), 516-26 PMID: 27111841

Schröder-Heurich B, Wieland B, Lavin MF, Schindler D, & Dörk T (2014). Protective role of RAD50 on chromatin bridges during abnormal cytokinesis. FASEB journal : official publication of the Federation of American Societies for Experimental Biology, 28 (3), 1331-41 PMID: 24344331

Wang L, Huang J, Jiang M, & Lin H (2012). Signal transducer and activator of transcription 2 (STAT2) metabolism coupling postmitotic outgrowth to visual and sound perception network in human left cerebrum by biocomputation. Journal of molecular neuroscience : MN, 47 (3), 649-58 PMID: 22219046

Kumar A, Bühler S, Selisko B, Davidson A, Mulder K, Canard B, Miller S, & Bartenschlager R (2013). Nuclear localization of dengue virus nonstructural protein 5 does not strictly correlate with efficient viral RNA replication and inhibition of type I interferon signaling. Journal of virology, 87 (8), 4545-57 PMID: 23408610

 Uchil, P., Kumar, A., & Satchidanandam, V. (2006). Nuclear Localization of Flavivirus RNA Synthesis in Infected Cells Journal of Virology, 80 (11), 5451-5464 DOI: 10.1128/JVI.01982-05

Davis, M., & Gack, M. (2015). Ubiquitination in the antiviral immune response Virology, 479-480, 52-65 DOI: 10.1016/j.virol.2015.02.033
